Geogrid creates robust permanent or semi-permanent ground protection. Ability to have a grass, gravel or sand finish depending on the site, to leave the site looking neat and tidy or natural with grass. It is also both lightweight and very durable.
Panel Weight: 2.3kg
Loading Capacity:25 tonne axle load
Panel Thickness: 40mm

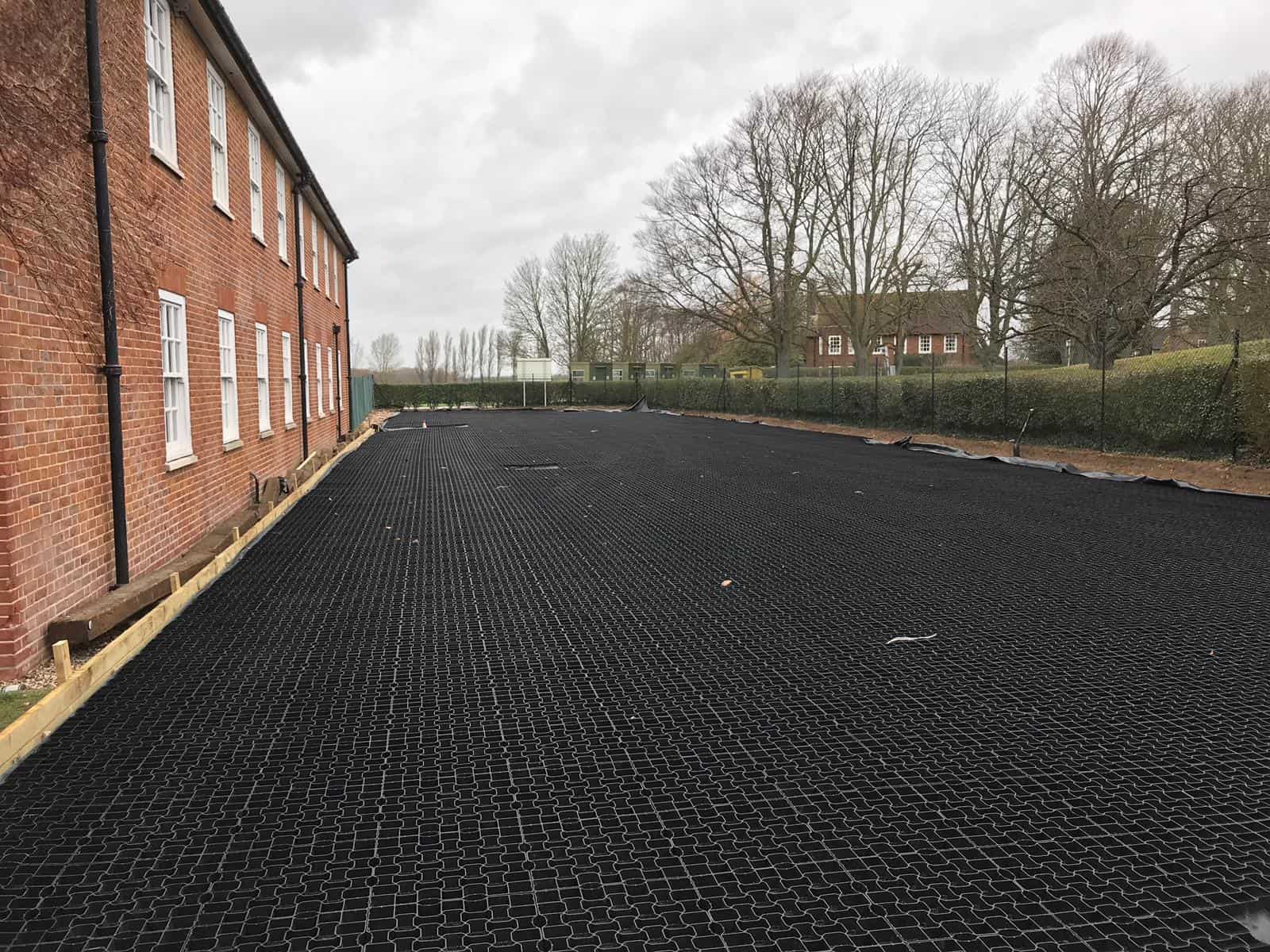

Geogrid is a modular honeycomb ground reinforcement system that is designed to be laid flush with the ground, to create an area which can be driven on and worked from all year round without rutting, and damage to ground occurring. The top soil should be removed first, then a layer of sand levelled over the subsoil, with the geogrid laid on top and joined together. The void in the geogrid can then be back filled with either soil, sand, gravel or other aggregate to your requirement, to leave a finish that is attractive, clean and reinforced.

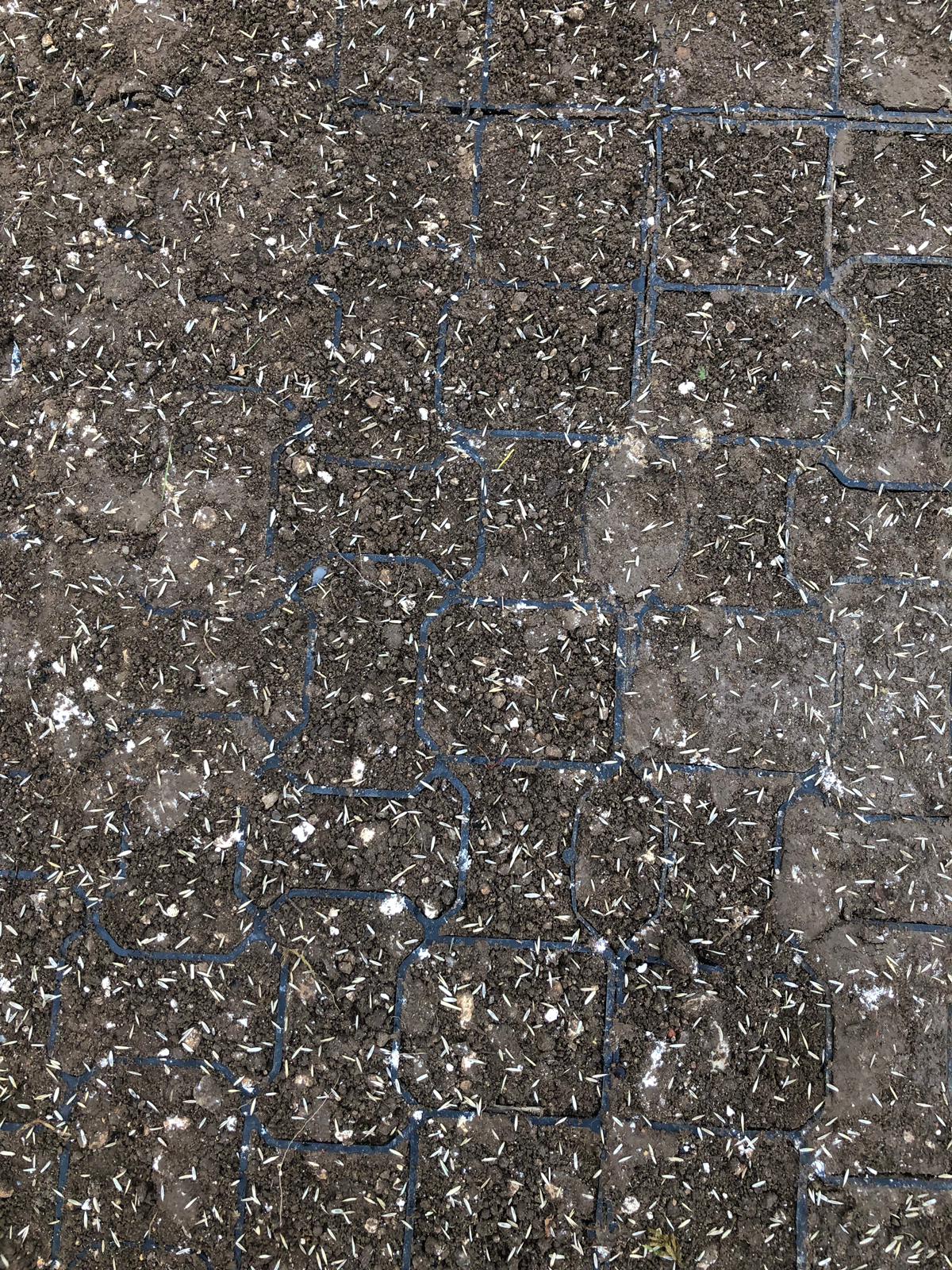

If soil has been used for backfilling, then it can also be seeded with grass. Geogrid ground reinforcement tiles are a permanent solution to create a mud free environment which can be used as an overflow car park or pedestrian walkway. These ground reinforcement grids are easy to install and are long lasting.
Installation (Removal is the opposite procedure)

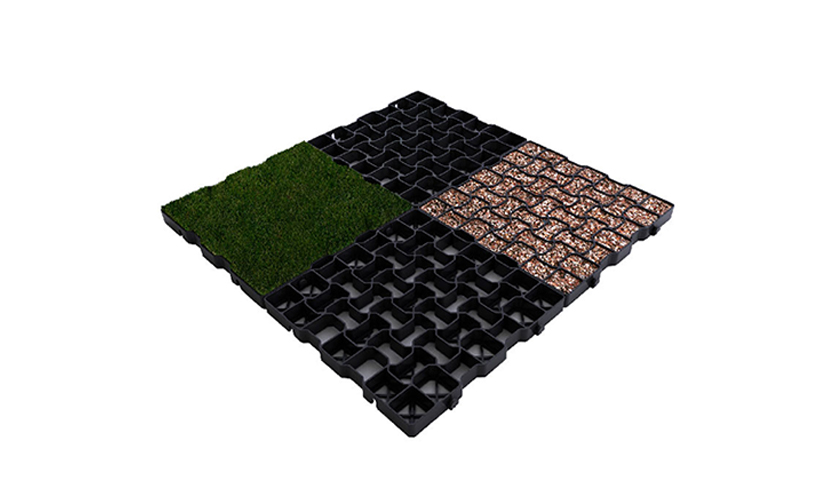

GeoGrid® is a modular, open design grid tile, manufactured in recycled low-density polyethylene. It is tough, flexible, easy to install and allows natural drainage.
The method of installation is determined by existing ground conditions as well as the end use and weight loading requirements. The methods described below provide general guidance only and do not form part of any contract with the user. We advise that the method of installation should be undertaken in accordance with your designers specification and drawings and the relevant Health and Safety requirements. Prior to use the GeoGrid® Pavers should be stored to prevent excessive mud, wet concrete or other damaging materials from coming into contact with and affixing to the GeoGrid®.

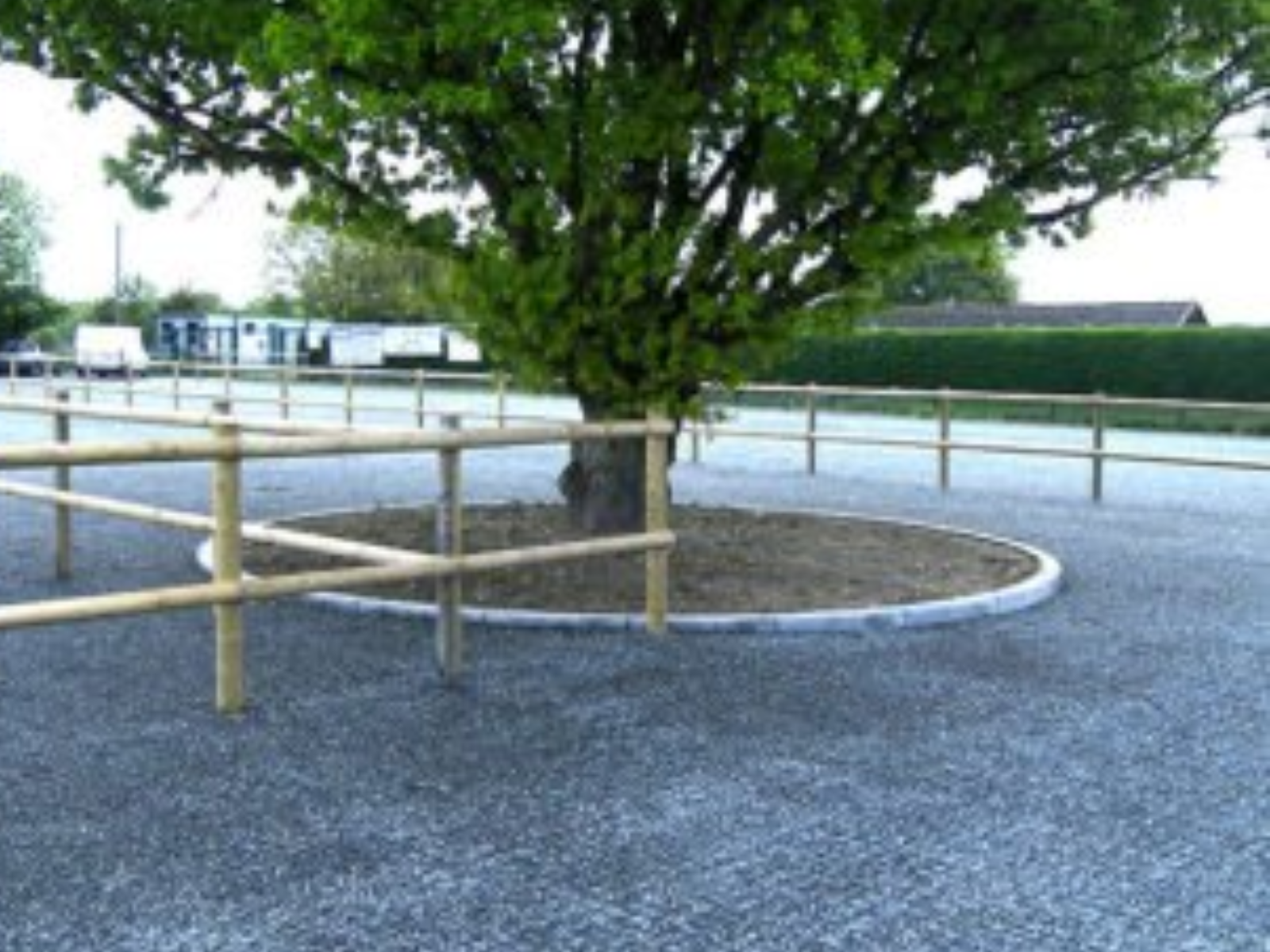

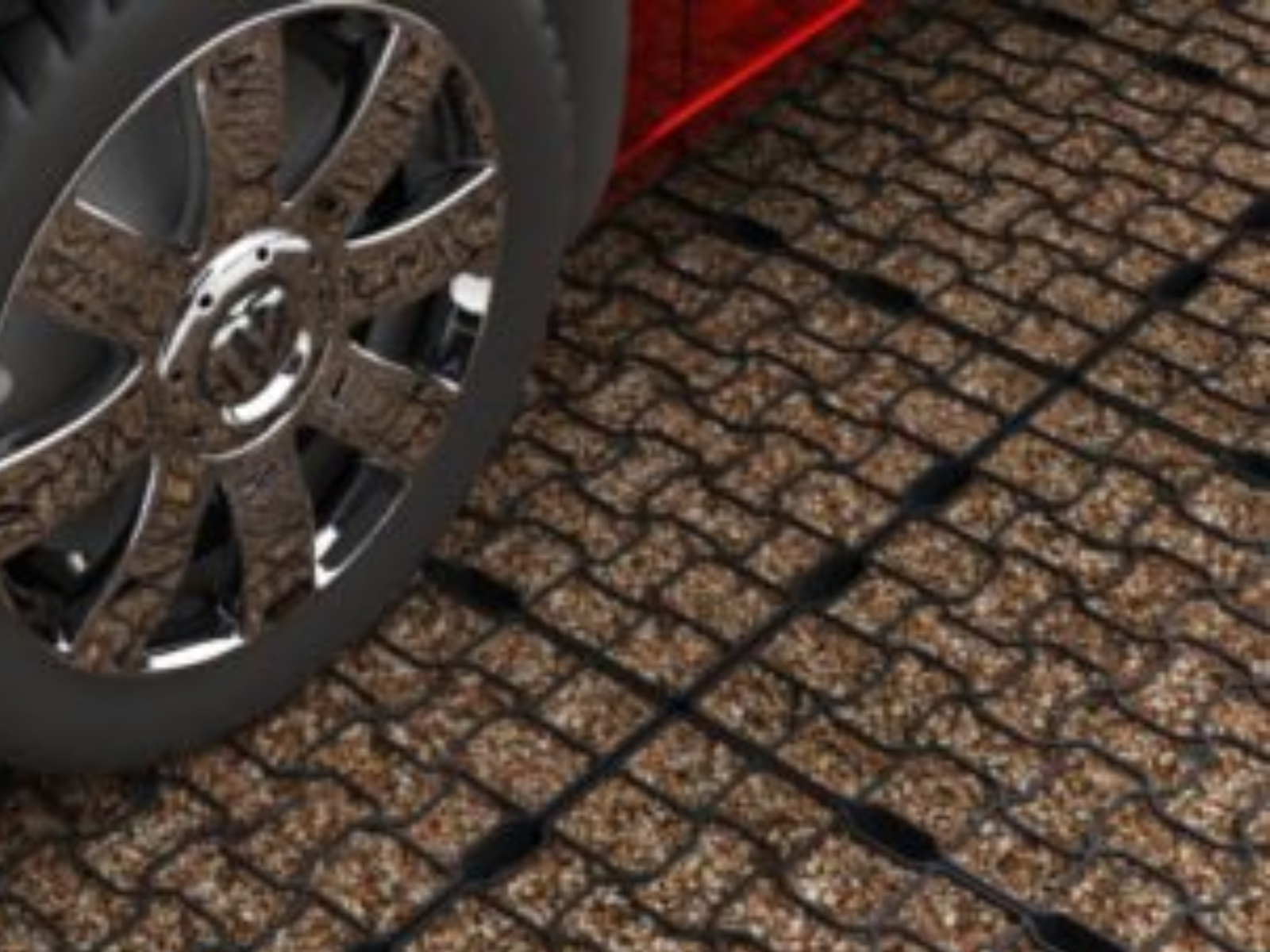

The grid structure can be filled with different materials such as soils (to support plant or grass establishment) or gravel / aggregates. We recommend that detailed design, specification and installation advice is sought from appropriately qualified civil and structural engineers.
Material: Recycled polyethylene
Tile Size: 495mm x 495mm x 40mm
Weight per tile: 0.57kg
Loading: 25 tonne axle load
