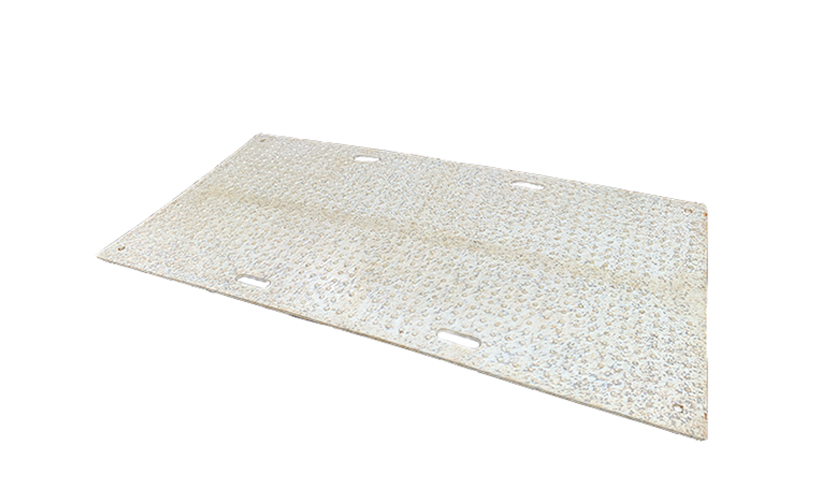

Mini Trakmat 1820mm x 910mm White

An excellent cost-effective substitute to our regular Trakmats. They are Less costly than other similar boards, due to the size of the panel but carry the same performance level as our regular medium duty panels.

Panel Weight: 23kg
Loading Capacity: 10-15 Tonnes (Ground Dependant)
Panel Thickness: 12mm
Material: Low density polythene (LDPE)
Environment: 100% recyclable

Construction

Parking

Events

Agriculture

Pedestrian

Description

Mini Trakmats are designed for the same work as our medium duty mats but differ in length and width. As they are smaller in size, they are a much more cost-effective way of seeking trackway that is still durable and strong. Their smaller frame means for easier handling and installing, as well as removal once the project is completed.

These mats also come with a 2-sided feature, as on one side of the mat is a bobbly surface, ideal for cars and vehicles, and the other being a smooth flat surface, ideal for pedestrians. It is an efficient versatile mat, suitable in any ground conditions.

Key Features

  • Light enough for one man handling
  • Ideal for pedestrians and vehicles
  • Installation is simple and easy
  • Smaller than a regular Trakmat, which means for easy handling
  • Protects against damage to ground
  • Self-cleaning grip surface
  • Does not absorb water

Installation (Removal is the opposite procedure)

Manual Handling
Each mat should be lifted by 2 or more people.

Handling
To lift a stack or stillage of mats from a lorry bed use an appropriate forklift truck. Stacks are normally 40-50. Place mat on to the ground to provide the coverage required. Ground preparation is not usually needed.

Connecting Mats
As each mat is placed it is recommended to connect it to the neighbouring mats using the correct connector. To connect 2 mats, place the 2-way connect or underneath the mats. The raised cylinders on the connector unit should fit within the holes on the corner of each mat. When in place secure using 2 connection bolts,(M10 x 25 with steel and rubber washer) taking care not to overtighten. Where 4 mats need to be place together, use the 4-way connector following the same process.

Length: 1828mm
Width: 914mm
Core Thickness: 12.7mm
Weight: 23kg
Environmental: 100% Recycled High Density Polyethylene

Mini Trakmat’s are made from recycled material
