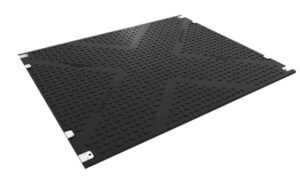

Tufftrak 2500mm x 3000mm Standard Black

Tufftrak is the ultimate heavy-duty trackway panel for temporary roadways and working areas ideal for heavy plant and machinery, to allow ingress to inaccessible places or to avoid working areas becoming too wet and unusable.

Panel Weight: 295kg
Loading Capacity: 150 Tonnes (Ground Dependant)
Panel Thickness: 38mm
Material: High-Density Polyethylene (HDPE)
Environment: 100% recyclable

Construction

Parking

Events

Agriculture

Pedestrian

Description

Tufftrak is a market leading heavy-duty plastic ground protection panel for temporary access roadways, trackways and working platforms delivering a safer work environment. Tufftrak heavy duty panels are made from premium 100% recycled high-density polyethylene and are hard wearing, tough and extremely versatile. These panels are regularly used in the following industries: construction, events, agriculture, power and transmission, renewables, and anywhere between where HGVs and people need to gain access where otherwise they would not be able.

Tufftrak mats have a load bearing capacity of up to 150 tonnes per meter square, depending on ground conditions, which is more than capable of taking all UK road-going vehicles, and large volumes of them on a daily basis.

Not suitable for use by steel tracked vehicles.

This product is available for both Hiring, and Sale

Key Features

  • Equivalent performance to aluminium panels, without such security risks or costs
  • Lower transport cost than other comparable mats
  • Non-conductive – ideal for use on transmission projects
  • Protects against severe rutting and eco damage to the ground and sensitive sites
  • Connection options for different terrain & equipment
  • A reversible low-profile surface for drilling rigs, work pads, depot areas and helipads
  • Solid one-piece construction, 38mm of solid plastic ensures rigidity to carry heavy loads
  • Anti-slip surface
  • Available for Hire or Sale

Installation (Removal is the opposite procedure)

Manual Handling
Tufftrak is too heavy for movement by hand, therefore needs to be lifted using mechanical means. This will usually be HGV Hiab cranes or forklifts with chains or grabs.

Handling
Tufftrak has lifting points on the sides, near the corners for lifting with chains. Maximum lift capacity should always be considered with the lifting machine. One mat should be lifted at a time, from the HGV delivering them, and lowered carefully into place on the ground.

Connecting Mats
As each mat is placed to provide the ground coverage required it is essential to connect it to the neighbouring mats using the correct connectors. Mats should never be used without being suitably fastened together. TuffTrak is designed to flex as vehicles move across it. Without connectors, hazards can be created and potentially cause damage to vehicles and mats.

Fasten the strap to both mats using two number M16bolts. Screw in the bolt until the head touches the strap. Over-tightening may cause damage to the mat connection points.

Material: High-Density Polyethylene (HDPE)

Panel Size: 2.5m x 3.0m

Panel Thickness: 38mm

Panel Weight: 295kg

Loading Capacity: 150 tonnes per square meter (ground dependent)

Environmental: 100% recyclable

Black Tufftrak are made from recycled material
The composite material is chemically inert to avoid the leaching of contaminants
Tufftrak is non-conductive, puncture resistant, weatherproof, water-resistant, and resistant to corrosion from acids, alkalies, and solvents.
